Aluminum Casting System

Name: casting plant 001	Name: casting plant 002	Name: casting plant 003	Name: casting plant 004
Name: aluminum bar casting die	Name: casting platform of aluminum bar	Name: casting windlass	Name: dummy ingot chair

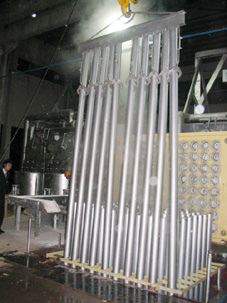

Name:flat section ingot die	Name:flat section ingot product	Name: square ingot die	Name:suspending batten

Application: casting aluminum and aluminum alloy ingots Casting method: Hot top casting of ingots in dense arrangement Hot top casting of ingots with cold multi-cavity mold Casting mold type: Aluminum water curtain type short casting mold. Aluminum water hole type short casting mold. Aluminum air film casting mold Copper casting mold Ingot size Round shape

Diameter	Length(mm)	Ingot number per batch
Φ73~Φ 545	6500~9000	2~120

Rectangular shape

width(mm)	thickness(mm)	length(mm)	Ingot number per batch
1150~80	80~260	6500~8000	2~4
