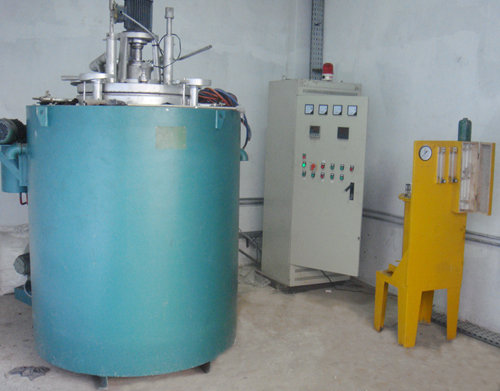

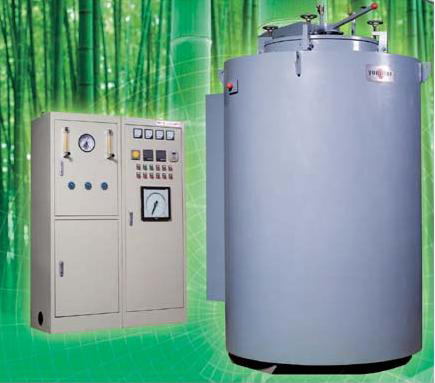

Well Type Gas Nitriding Furnace

Name: Well Type Gas Nitriding Furnace

Name: Well Type Gas Nitriding Furnace

Name: Well Type Gas Nitriding Furnace

Description:
Gas nitriding furnace are widely used for heat treatment of smaller component and for mass produced components upto temperature of 1050 Deg C, these are offered at industry leading prices. Any desired atmosphere can be maintained in this furnace to undertake heat treatment process as desired by the clients.
Specifications:

parameter name		unit	model
			ABE2-20-6	ABE2-35-6	ABE2-45-6	ABE2-60-6	ABE2-80-6	ABE2-90-6	ABE2-105-6
Rated power		KW	20	35	45	60	80	90	105
Rated voltage		V	380	380	380	380	380	380	380
Raed temperature			650	650	650	650	650	650	650
chests		chest	3	3	3	3	3	3	3
Stainless steel vacuum tank size	diameter	mm	Φ400	Φ500	Φ500	Φ700	Φ900	Φ900	Φ1100
	deep	mm	550	650	900	900	1200	1400	1300
pyrogenation organ connection			in series	Y	Y	YY	YY	YY	YY
empty furnace  calefactive time		h	≤1.2	≤1.2	≤1.2	≤1.2	≤1.2	≤1.5	≤1.5
empty furnace wear down power		KW	≤5	≤9.6	≤12	≤15	≤20	≤24	≤24
control temperature precision			±1	±1	±1	±1	±1	±1	±1
Maximum load		Kg	180	250	320	650	950	1500	1800
weight		Kg	1800	2500	2800	3500	5200	5900	6500

parameter name		unit	modle
			ABE2-120-6	ABE2-140-6	ABE2-150-6	ABE2-150-6	ABE2-180-6	ABE2-250-6	ABE2-280-6
Rated power		KW	120	140	150	150	180	140	150
Rated voltage		V	380	380	380	380	380	380	380
Rated temperature			650	650	650	650	650	650	650
chests		chest	3	3	3	3	3	3	3
Stainless steel vacuum tank size	diameter	mm	Φ900	Φ1500	Φ800	Φ1000	Φ1100	Φ1500	Φ900
	deep	mm	1600	1400	3500	4000	4000	3000	7000
calefaction element connection			YY	YY	YY	YY	YY	YY	YY
empty furnace calefactive time		h	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
empty furnace wear down power		KW	≤32	≤36	≤39	≤39	≤48	≤52	≤66
control precision			±1	±1	±1	±1	±1	±1	±1
Maximum load		Kg	2000	2500	2800	3000	3500	4000	4500
weight		Kg	6900	6900	7200	7800	8200	8300	9800
