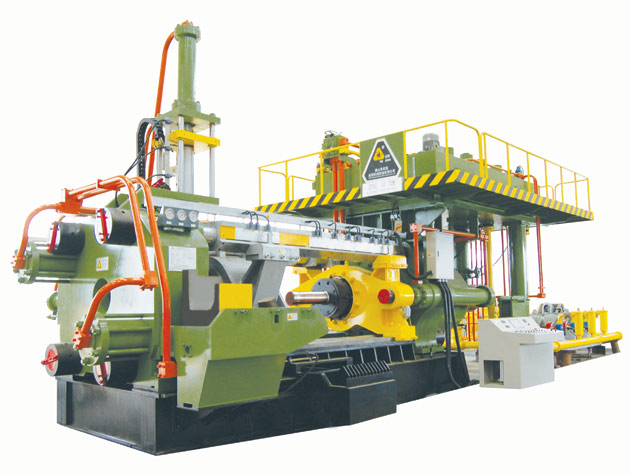

Extrusion press

	Name : Extrusion Press ABE-2500
	Specifications:
	Billet diameter: Φ210- Φ250mm
	Billet length:≤670mm
	Container inner diameter:Φ218-Φ258mm(only for reference)
	Container length:900mm
	Extrusion pressure: 25MN
	Main system pressure:21MPa
	Extruding stroke: 1900mm
	Extruding speed: 13.8mm/s (adjustable)
	Back stroke force: 1253KN
	Locking force: 1900KN
	Die opening force: 1939KN
	Heating power:1030KW
	Center height:65mm
	Total weight:1700T
