Extrusion press

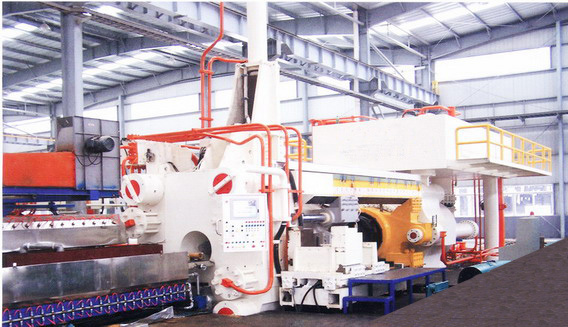

	Name :Extrusion press ABE-4000
	Specifications:
	Model:ABE-4000
	Gross power(kw):920
	Working pressure(MPA):21
	Plunger diameter(mm):1420
	Specification of the main auxiliary oil vessel(mm): Φ320xΦ250
	Specification of the oil vessel for the holding part(mm): Φ280xΦ160
	Specification of the oil vessel for the cutting part(mm): Φ280xΦ220
	Dimension of the aluminum bar (mm): Φ320x1200
	Size of discharge gate (mm): Φ380x450
	External measurement :18500x6530x8040
	Center height of main set: 2310
	Total weight: 330
