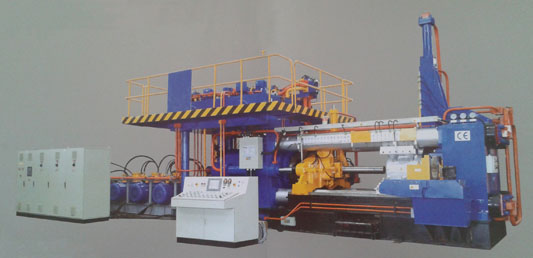

Extrusion press ⇒ Extrusion Press WTM-2000（single action,short stroke, front material feeding type）
| |
|
|
 |
Name : Extrusion Press WTM-2000（single action,short stroke, front material feeding type） |
Specifications: |
| Billet diameter :178mm |
| Billet length: 400-800mm |
| Container diameter: 188mm |
| Container length: 830mm |
| Extrusion pressure: 2072MT |
| Main system pressure: 28MPa |
| Main cylinder extruding stroke: 1000mm |
| Side cylinder extruding stroke: 1040mm |
| Extruding speed: 18mm/s （adjustable） |
| Container locking force: 212MT |
| Container open force: 149MT |
| Shearing force:71MT |
